Wooden Running Boards

I made running boards for the van out of construction lumber.
I wanted running boards for the van, but couldn't justify the hundreds of dollars for professional metal ones, so I made a set out of left-over 2x3 lumber. Including labor, they probably cost four times as much, but this way the van is unique!
The outer board is held on by glue on the exposed dowels. The back is braced by gussets to the vertical supports which is connected to the body flange, all held together by lag bolts. The support and the gusset are glued together.
A few months after installing them, my wife hit a curb and busted up the long side, so I repaired it. Another advantage of working in wood, it doesn't break your car when you hit something, and you can fix it with some wood glue!

I occasionally do handyman work along with other physical products. If you'd like to commission a custom build, I can help you with that.

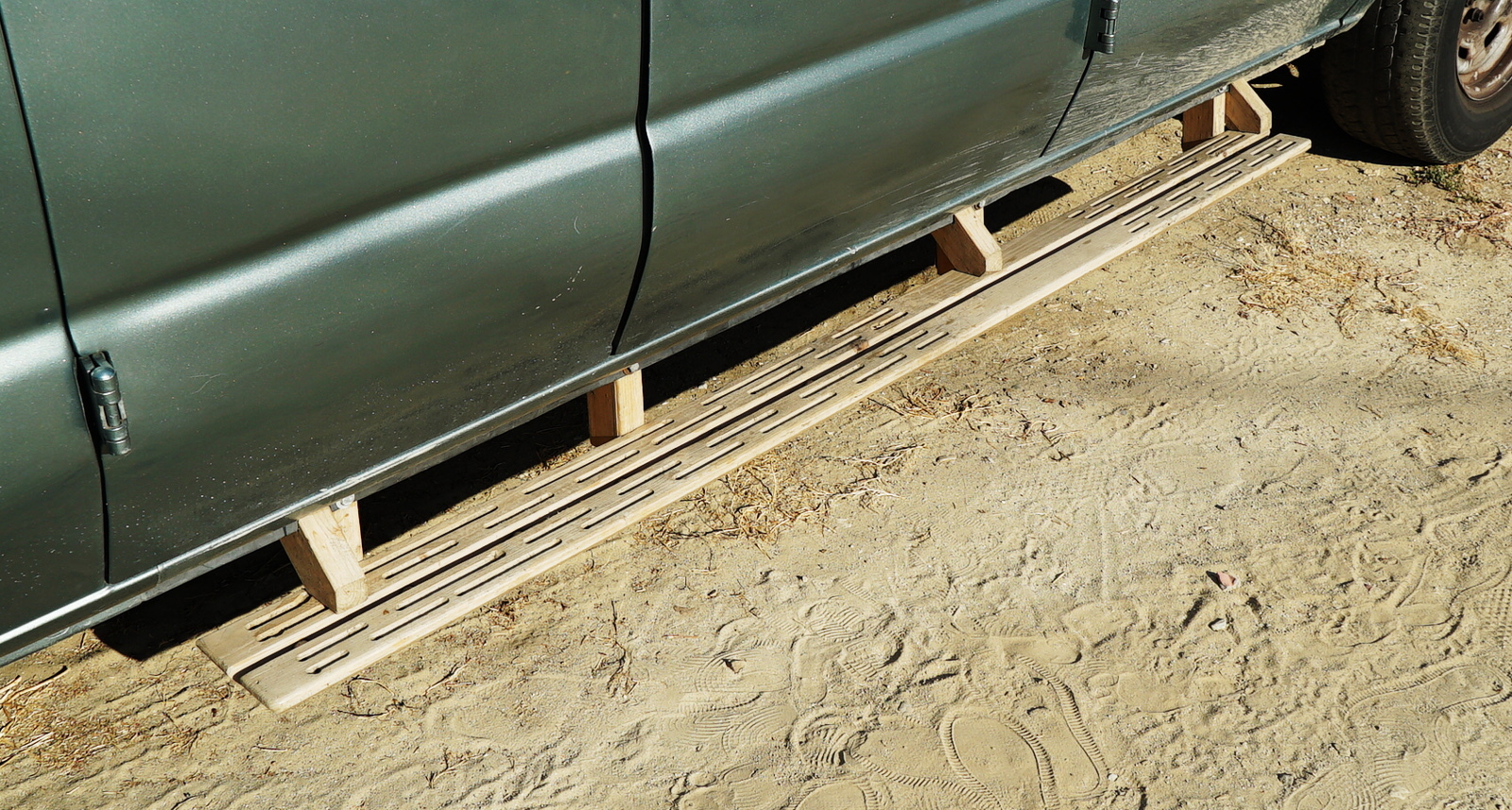

Passenger side wooden running board. The grooves are to increase the friction so your feet don't slide as easily.

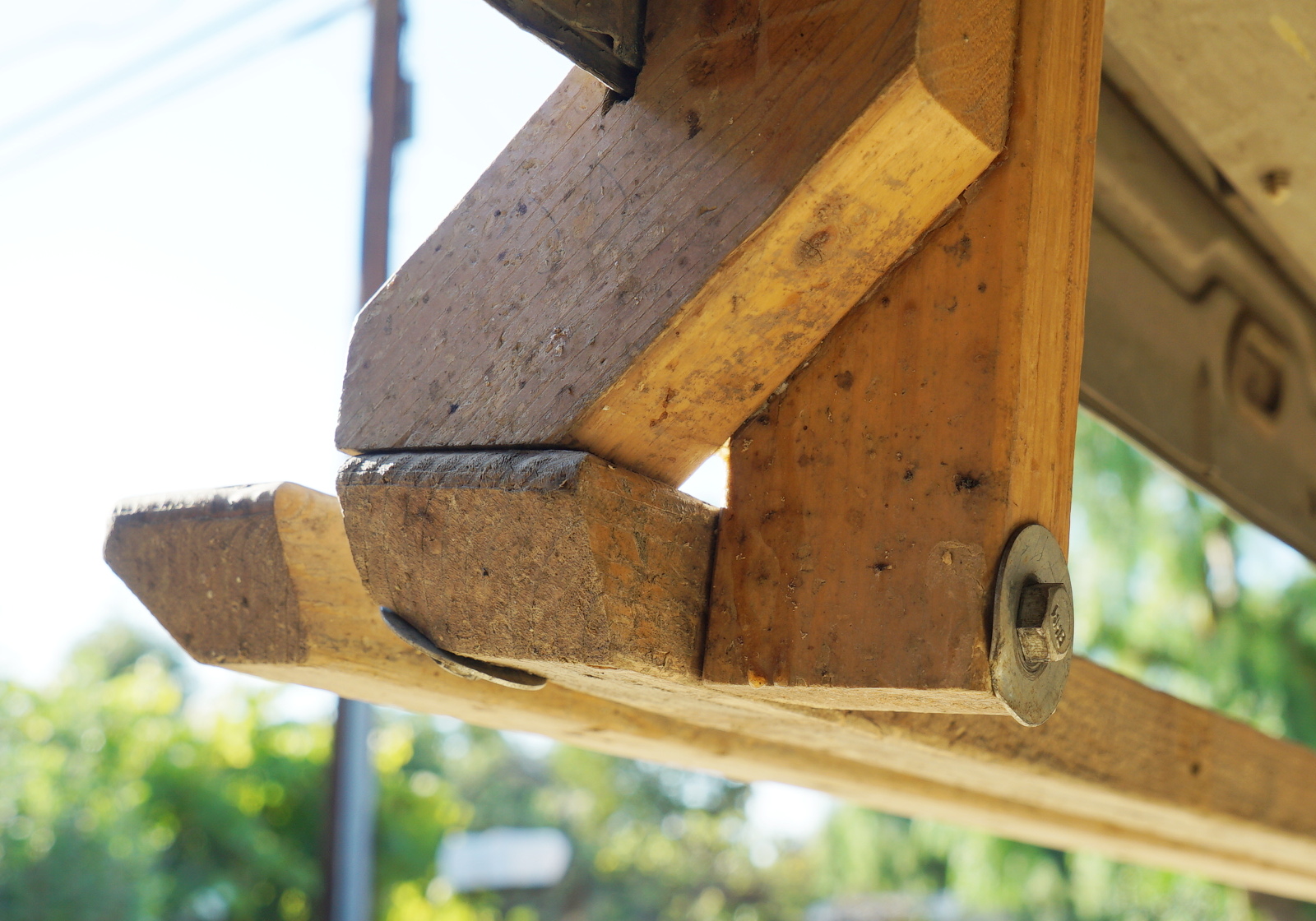

Running board gusset. The lag bolt extends about half-way through the gusset board.

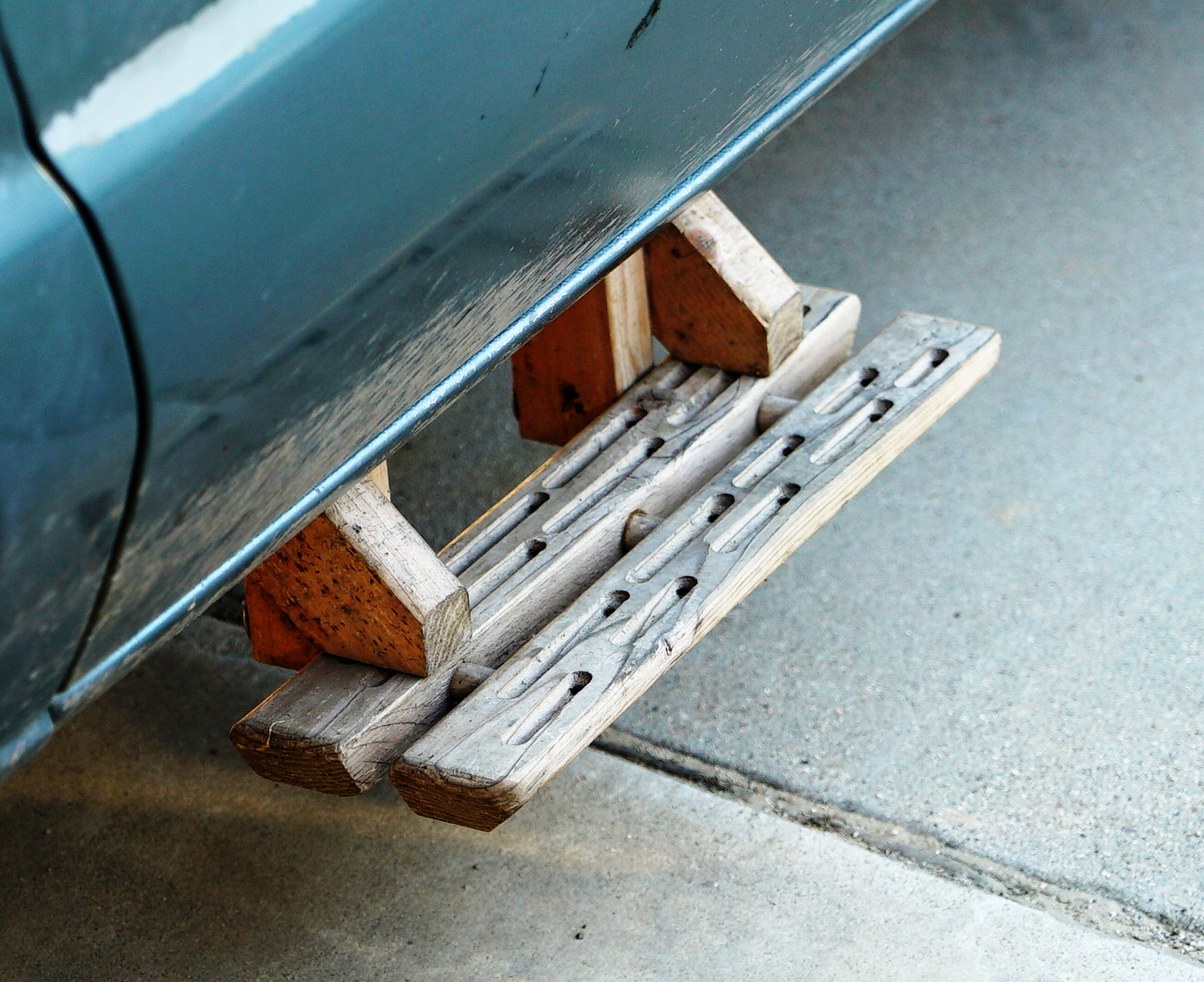

The Drivers Side Running Board. You can see the drain holes at the back of each groove segment, so there's no standing water in the grooves when it rains.

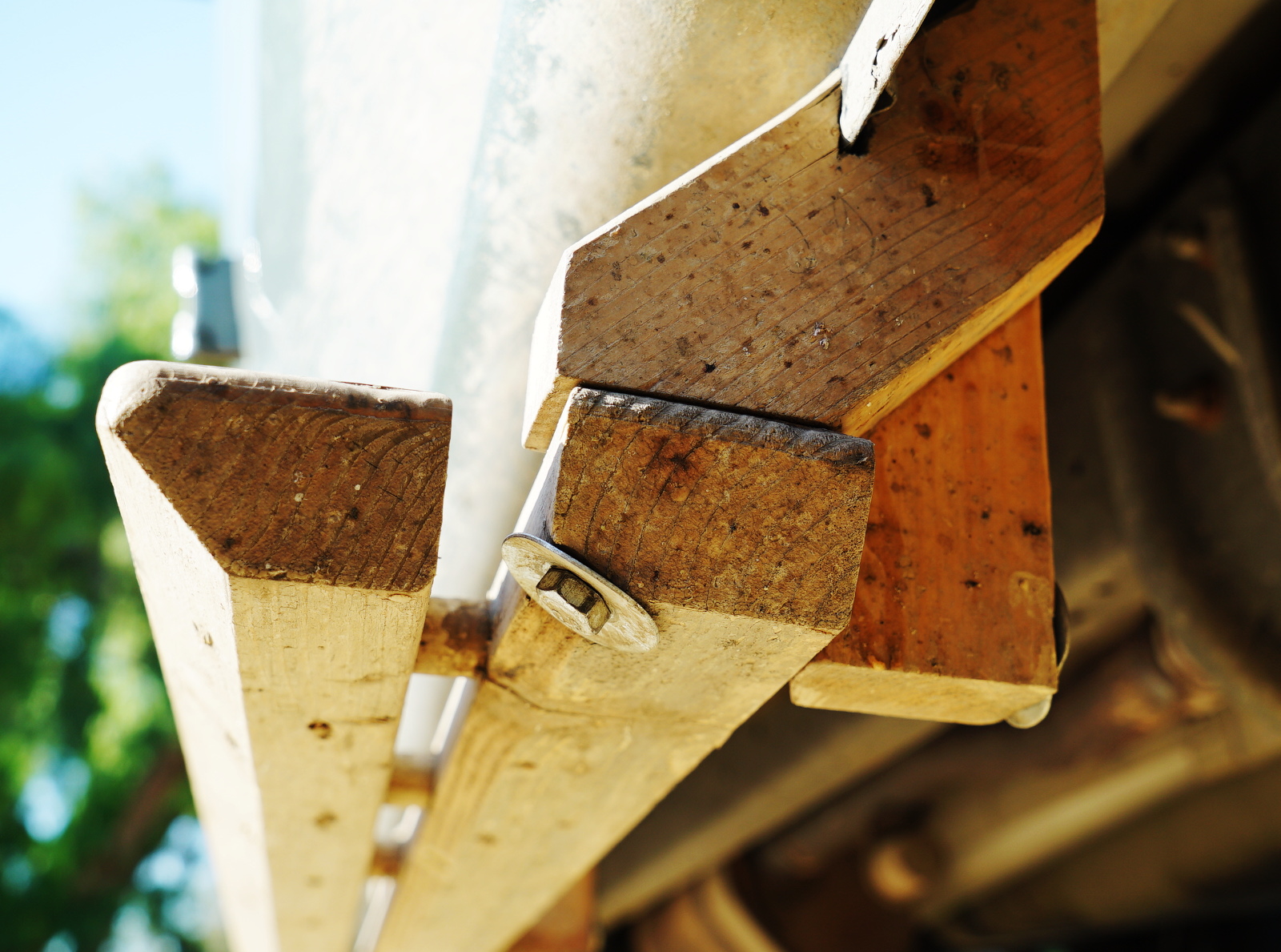

The supports are held on by two lag bolts, each of which with about an inch and a half of engagement.
